D R A I N A G E S Y S T E M S
C H A N N E L D R A I N S / T R E N C H D R A I N S:
CHANNEL DRAINS, also known as TRENCH DRAINS, are linear surface drains with a removable cover grate on top used to collect surface run-off water. They vary in width from 1" to 16" and are constructed of plastic, steel or concrete or formed in place. Grates are available in cast iron, steel, brass and plastic.
CHANNEL DRAINS operate on the same principle as a roof gutter; as a perimeter drain at the edge of a slope. The runoff water collected in the drain discharges out one end of the bottom into a 4" drain pipe system terminated at a discharge point, usually the street.
CHANNEL DRAINS are used to protect large open surface areas with large volume runoffs such as driveways, patios, swimming pools & spas, sidewalks, entries and parking lots.

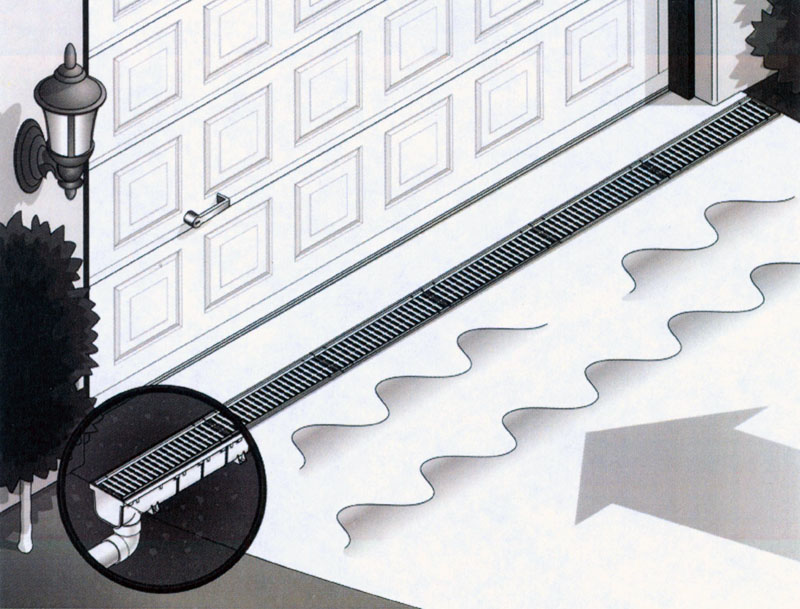

Channel Drain / Trench Drain
Channel Drain / Trench Drain detail drawing.
